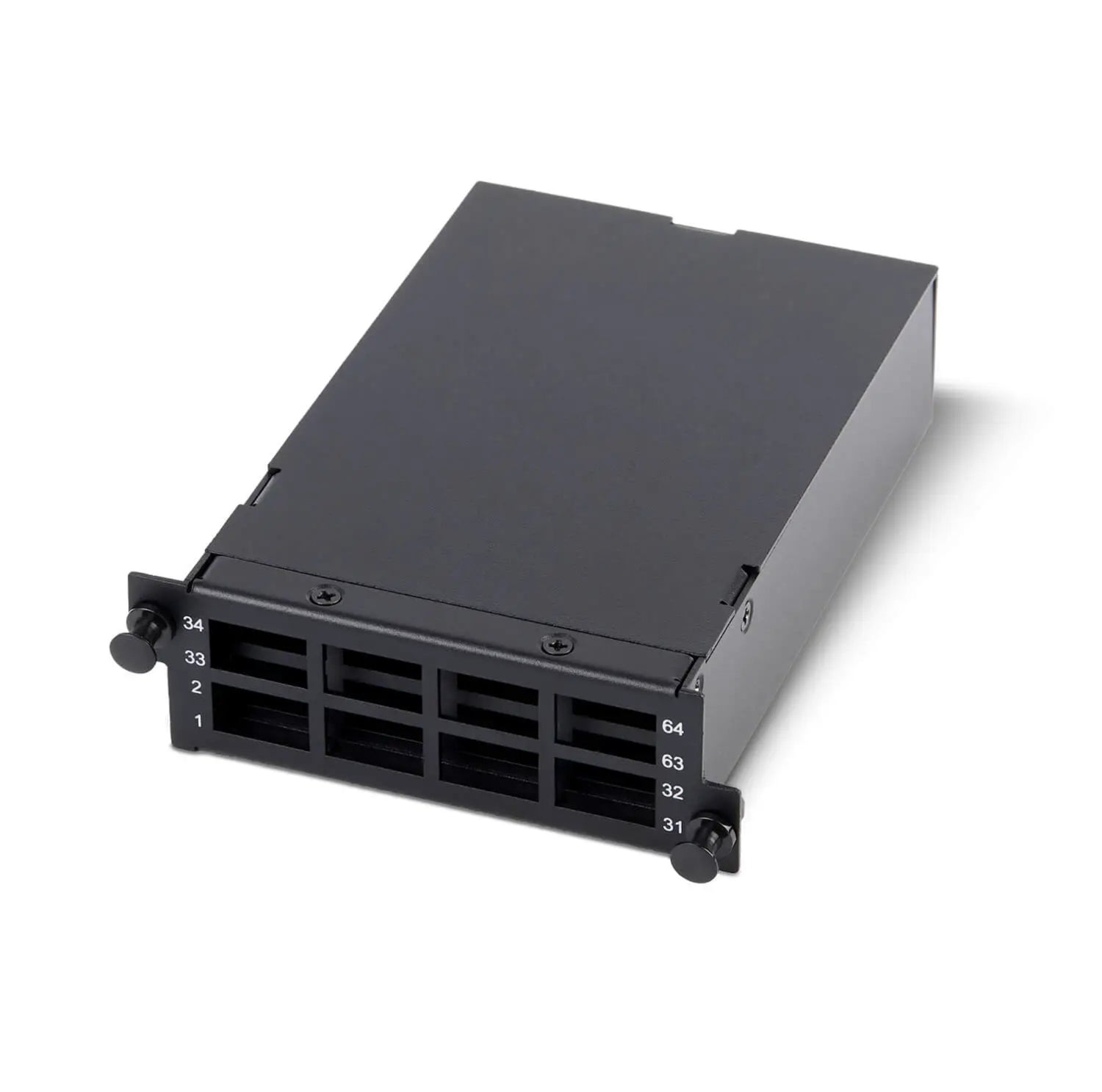

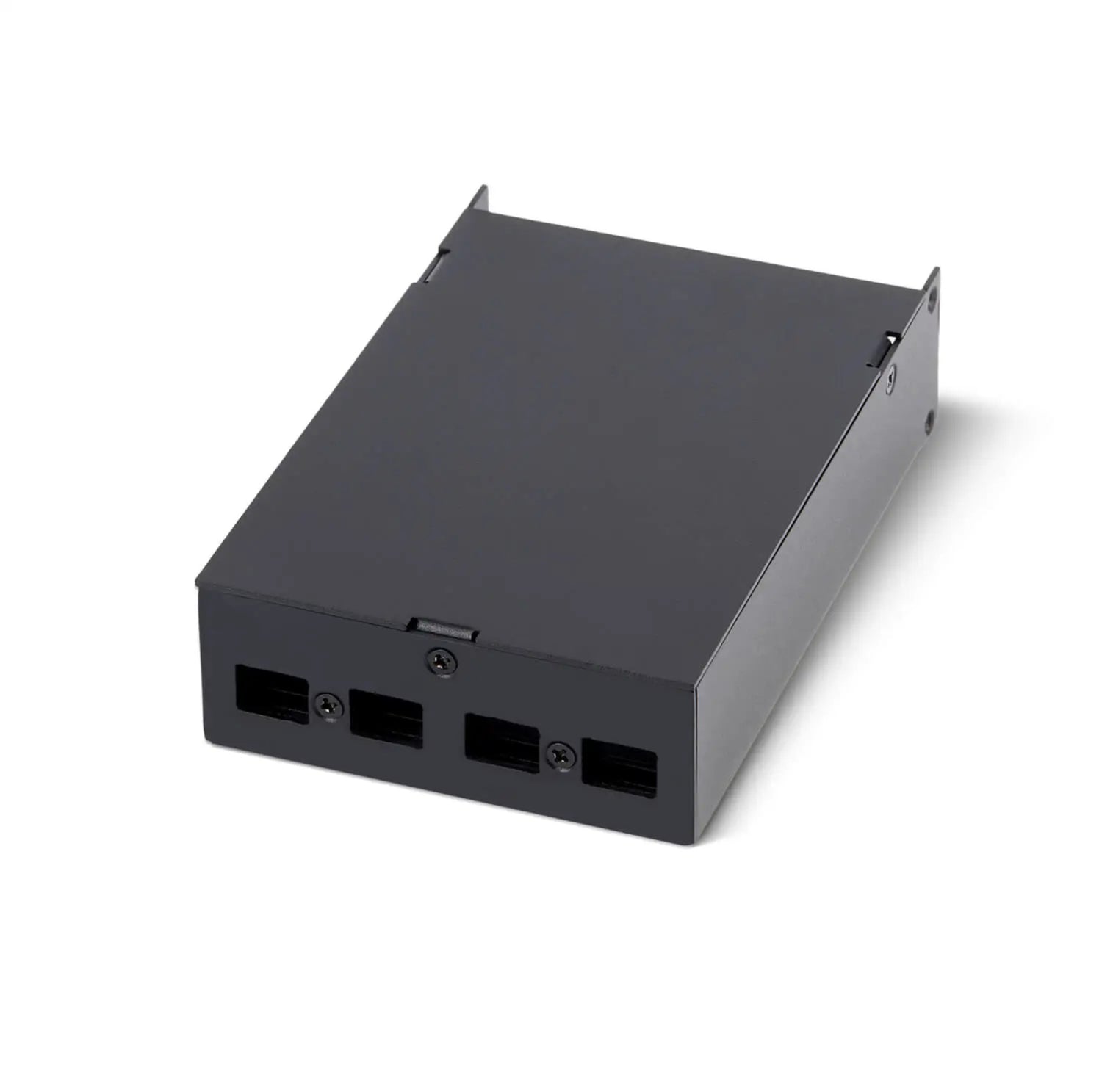

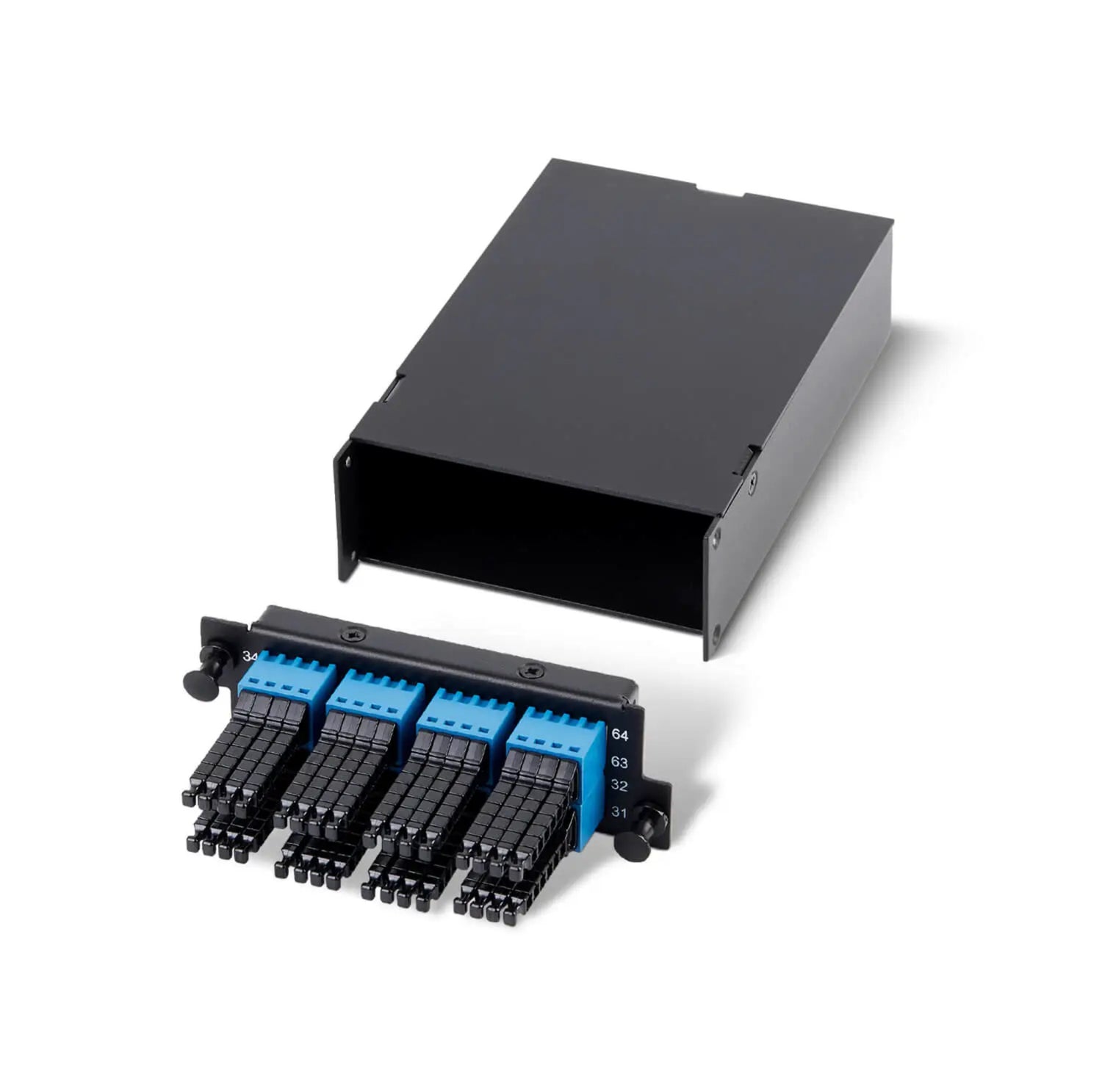

4MPO/MTP®-MDC(64F) Metal Module Cassettes, Match for UltraX/Y/N/S Series Enclosures
4MPO/MTP®-MDC(64F) Metal Module Cassettes, Match for UltraX/Y/N/S Series Enclosures has a longer lead time. Please feel free to contact us via chat before placing your order.
📦 For bulk orders, please contact us for a customized quote
4MPO/MTP®-MDC(64F) Metal Module Cassettes, Match for UltraX/Y/N/S S...

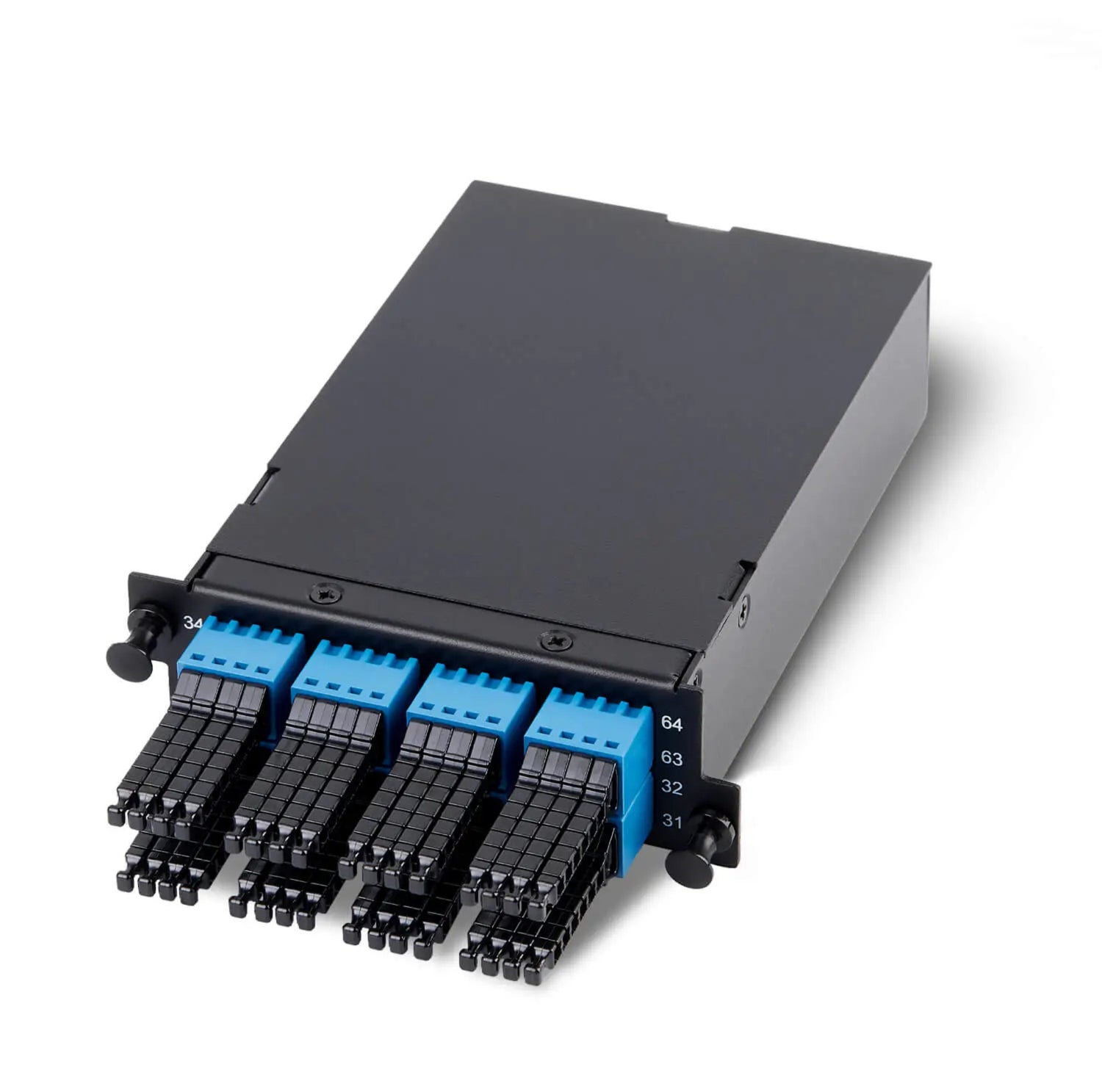

SpeedyFiberTX optical module cassettes in the MDC Series are designed to efficiently break out four MPO/MTP connectors into USCONEC MDC connectors. This metal cassette accommodates up to 256 channels within a 1U space, significantly simplifying the deployment of ultra-high-density optical networks. It is an ideal choice for projects requiring compact cabling solutions and ensures a seamless upgrade for existing installations.
Optic Performance
| Parameters | SM (MDC/UPC-MPO/MTP®) | SM (MDC/APC-MPO/MTP®) | MM (OM3) (MDC/PC-MPO/MTP®) | MM (OM4) (MDC/PC-MPO/MTP®) |
| Max Insertion Loss (dB) | 0.6 | 0.6 | 0.6 | 0.6 |
| Typical (dB) | 0.35 | 0.35 | 0.3 | 0.3 |
| Min Return Loss (dB) | 55 | 60 | 20 | 20 |
General Information
| Cassette Material | Aluminum |
| Front Adapter | MDC (Quad) |
| Rear Adapter | MPO/MTP® |
| Adapter Color (Front) | Blue / Green / Aqua / Heather Violet |
| Adapter Color (Rear) | Black / Gray / Yellow① |
| Capacity | 64F |
| Standard | RoHS/REACH |
| Dimension (mm) | 109.5 × 35 × 140 |
| Weight (g) | 263② |
| Applications | Match for UltraX/Y/N/S Enclosure |
② The weight includes the weight of the front and rear adapters, but excludes the weight of the cables.
