SpeedyFiberTX  |  SKU: TST-MTP-M12

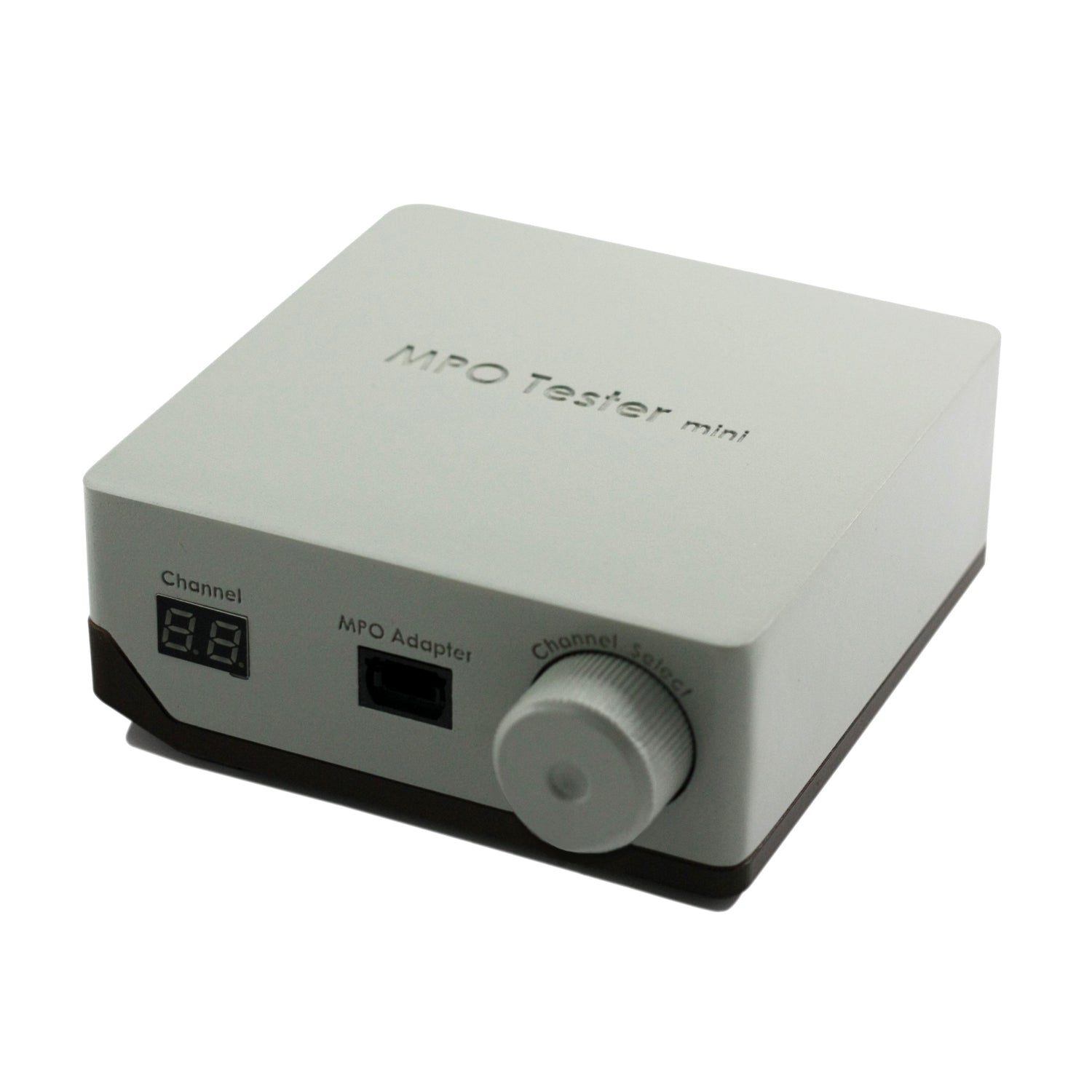

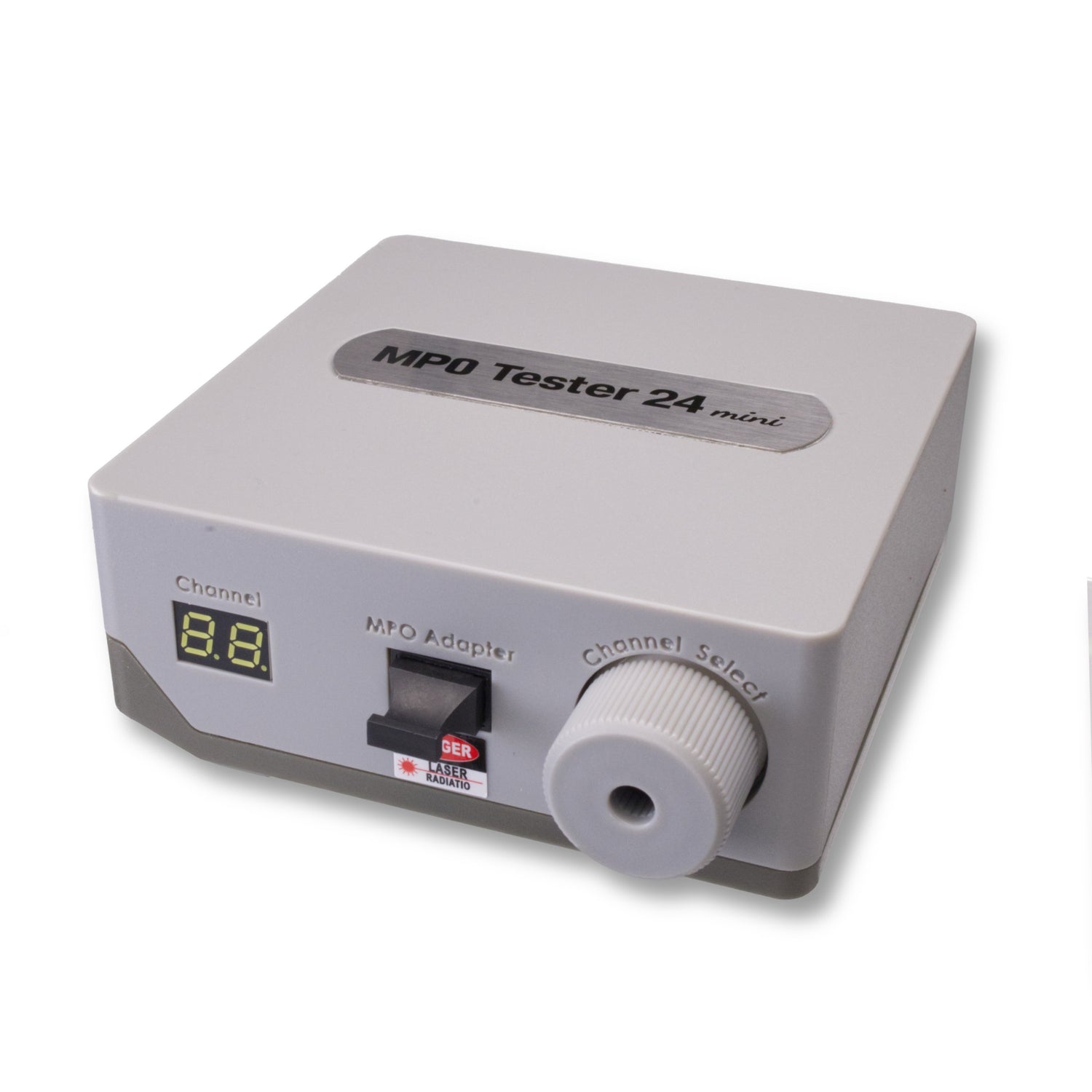

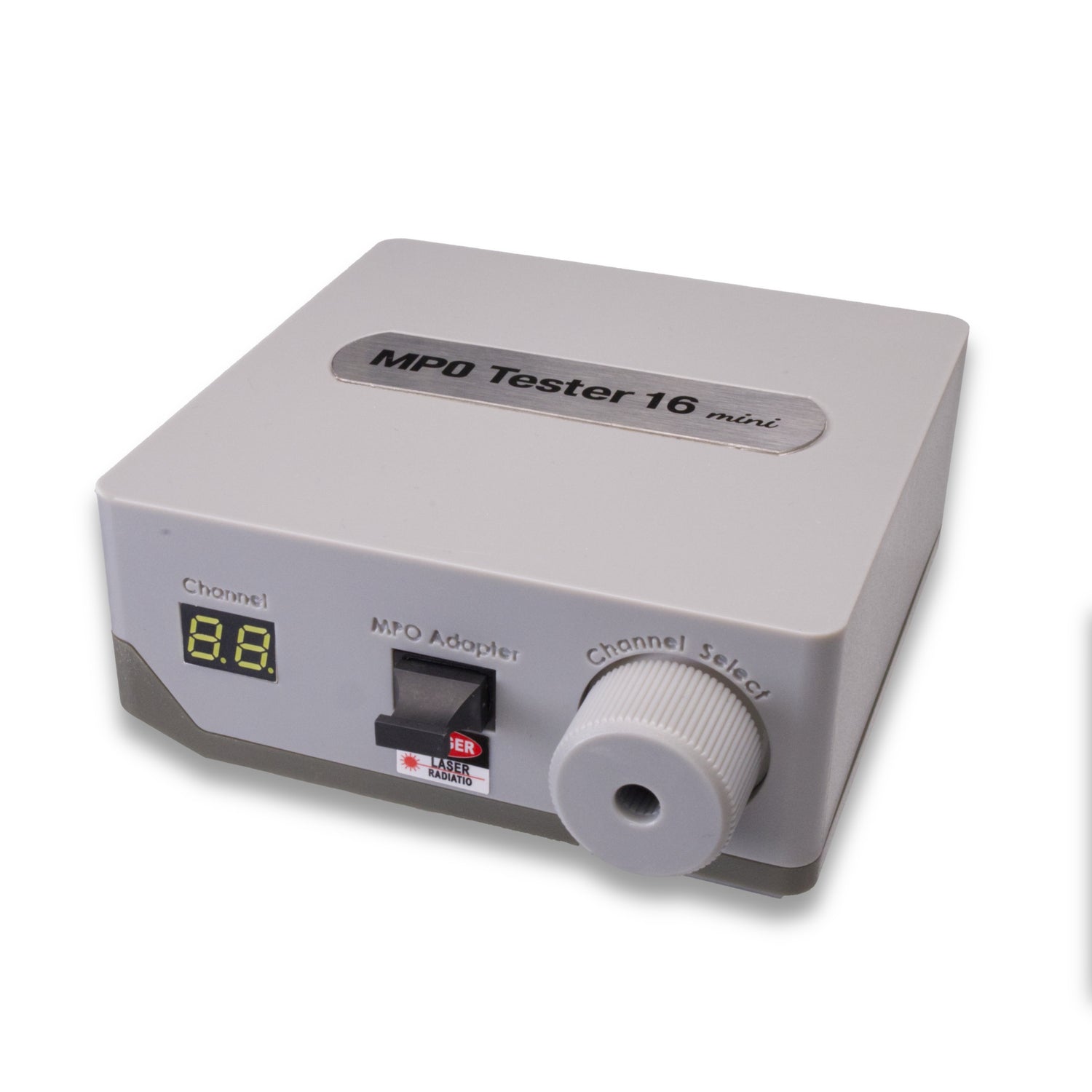

MTP/MPO Tester Mini | Quick Test for 12/16/24F MPO/MTP Cables

  • Easily detect fiber faults using a 650 nm visible red laser
  • Range: up to 1 km for SMF or MMF fiber
  • Supports additional testing with 12F, 16F, or 24F MTP/MPO connectors
  • Highly efficient power circuit ensures stable laser output
  • Operates in Continuous Wave (CW) Mode, Pulse Mode, Scan Circular Mode, or Manual Mode
  • Powered via an external USB-C port for direct connection or charging the internal battery, with optional Graphical User Interface (GUI) Control Mode support
  • ※ When operating the MTP/MPO Tester Mini via an external USB-C connection, all other modes will be disabled
  • Made in Taiwan | TAA Compliant
Tax included Shipping calculated at checkout.
  • 🎉 Buy any 6, Get 5% Off.
  • ✈️ Free Shipping on Orders Over $499 USD $99 USD until Sep 30.
Request a Quote

The MTP/MPO Tester Mini is a compact and highly useful tool for detecting defects in MTP/MPO array fiber cables or connectors. It emits a 650 nm visible red laser through fiber optic cables, and if breaks or defects are present, the light refracts to create a bright glow around the faulty area.

The LD output signal can switch across all 12F, 16F, or 24F fibers, operating in Continuous Wave (CW) mode or other modes to produce different visual effects for efficient testing and troubleshooting.
