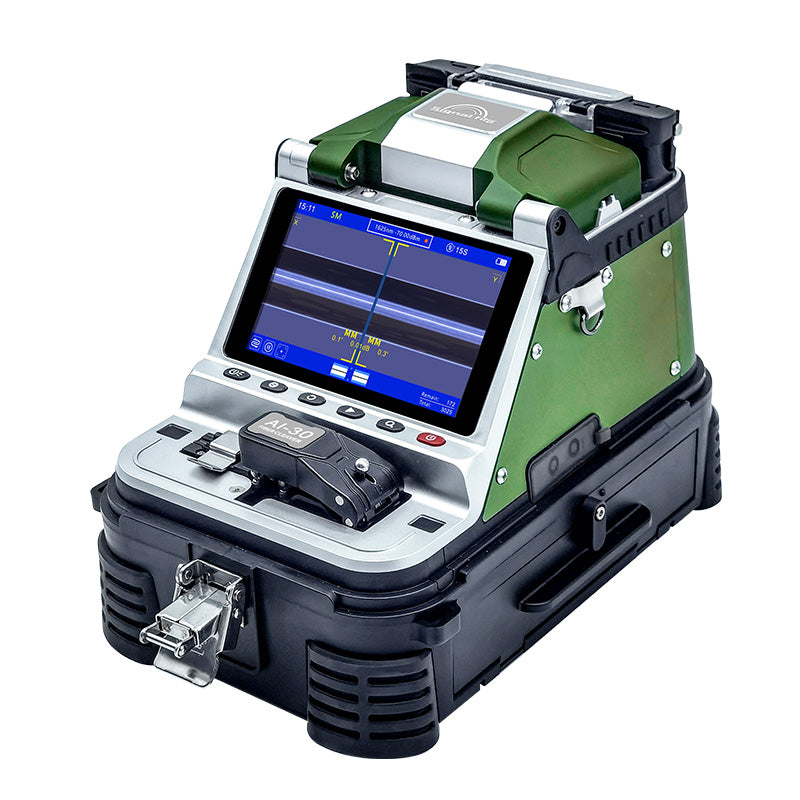

Signal Fire AI-30 Fiber Fusion Splicer (6 Motors Core Alignment)
Signal Fire AI-30 Fiber Fusion Splicer (6 Motors Core Alignment) has a longer lead time. Please feel free to contact us via chat before placing your order.
📦 For bulk orders, please contact us for a customized quote
Signal Fire AI-30 Fiber Fusion Splicer (6 Motors Core Alignment)
Signal Fire AI-30 – The 4th Generation All-in-One Trunk Line Splicer
Lightning-Fast Splicing & Heating
Equipped with a more advanced central processing unit and optimized algorithms, the AI-30 achieves a 1-second startup, 6-second rapid fusion, and 15-second automatic heating. With a 7800mAh high-capacity lithium battery, it supports up to 240 cycles of splicing and heating on a single charge, ensuring reliable performance even in harsh environments such as high altitudes or extreme cold.
Full Link Integration & Automatic Cutting

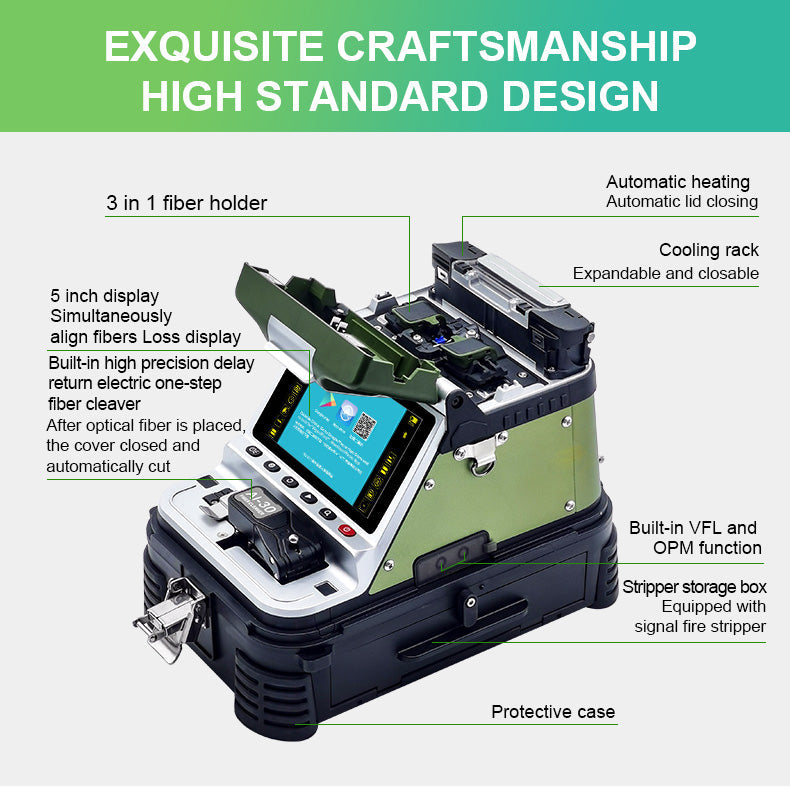

The AI-30 is the first to feature a built-in "delay return electric one-step fiber cleaver." Once the fiber is placed and the lid is closed, the machine automatically performs high-precision cutting. This innovative design perfectly solves the scratching issues found in traditional mechanical cleavers. Furthermore, the blade surface can rotate automatically to maintain cutting quality without manual intervention.
Trunk-Line Precision
Utilizing six high-precision motors and the latest core alignment technology, the AI-30 achieves an alignment accuracy of 0.05µm. The 5-inch high-resolution screen provides up to 320x magnification for a clear view of the fiber core, minimizing fusion loss and making it fully capable of long-distance mainline fiber optic projects.
Smart All-in-One Toolset

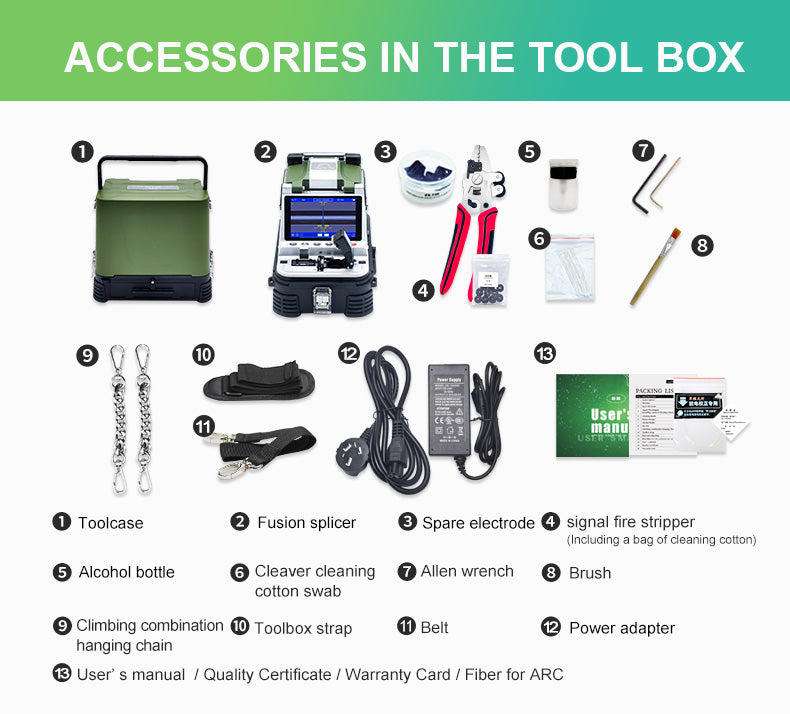

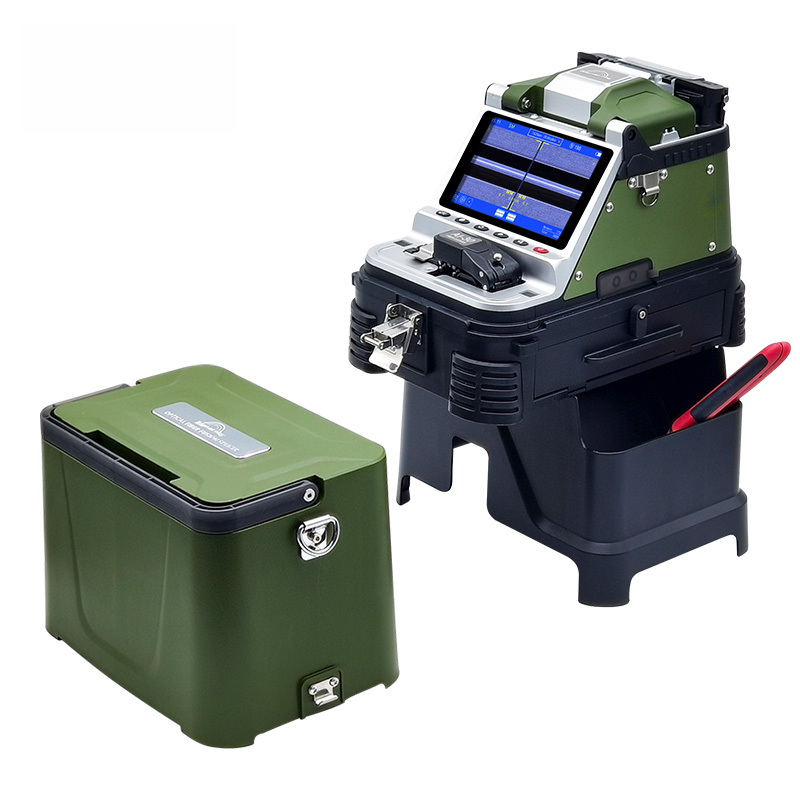

Designed for maximum efficiency, the machine integrates an Optical Power Meter (OPM) and Visual Fault Locator (VFL) to track fiber lines and detect breakpoints instantly. It comes with a Signal Fire nine-in-one stripper and a versatile tool box that doubles as a workbench and sitting stool, providing a complete mobile workstation for both high-climbing and ground-level tasks.
Intelligent Management
Connect via Bluetooth to the mobile APP to manage system parameters, monitor blade life, and adjust LED brightness. The system supports unlimited splicing record storage and automatic discharge calibration, allowing engineers to maintain peak performance and data traceability across different geographic locations.
| Fiber alignment | Six motors core alignment (Trunk line level) [cite: 4, 39] |
| Alignment accuracy | 0.05 μm |
| Splicing time | 6 s |
| Heating time | 15 s (Automatic heating with lid closing) [cite: 47, 85] |
| Integrated Cleaver | Built-in high precision delay return electric one-step fiber cleaver (Auto-rotating blade) [cite: 56, 137, 145] |
| Fiber type | SM (G.652&G.657), MM (G.651), DS (G.653), NZDS (G.655) [cite: 21] |
| Fiber holder | 3-in-1 fiber holder (suitable for bare fiber, pigtail, jumper, drop cable) [cite: 78] |
| VFL | Power 15mW, 10km range, 2Hz flashing and steady-on mode [cite: 192, 21] |
| OPM | Wavelength: 850, 1300, 1310, 1490, 1550, 1625, 980, 1270, 1577, 1650 nm Range: -50~+30dBm [cite: 21] |
| Battery capacity | 7800 mAh large capacity lithium battery; ~240 cycles (splicing & heating) |
| Magnification | 320x (X or Y single display), 200x (X & Y dual display) [cite: 11] |
| Display | 5 inch TFT color high-definition LCD screen |
| Boot time | 1 s startup to working mode |
| Wireless communication | Bluetooth connection for system parameter adjustment and data management [cite: 20] |
| Integrated Tools | Equipped with Signal Fire 9-in-1 stripper and storage box [cite: 3, 90] |
| Work Environment | Suitable for high altitude, dry, and cold harsh environments |
| Size & Weight | Tool case: 25.5x16.5x23 cm; Total weight (machine + accessories): 4.5kg [cite: 7] |
