SpeedyFiberTX  |  SKU: QDD-400G-SR8-S-100M

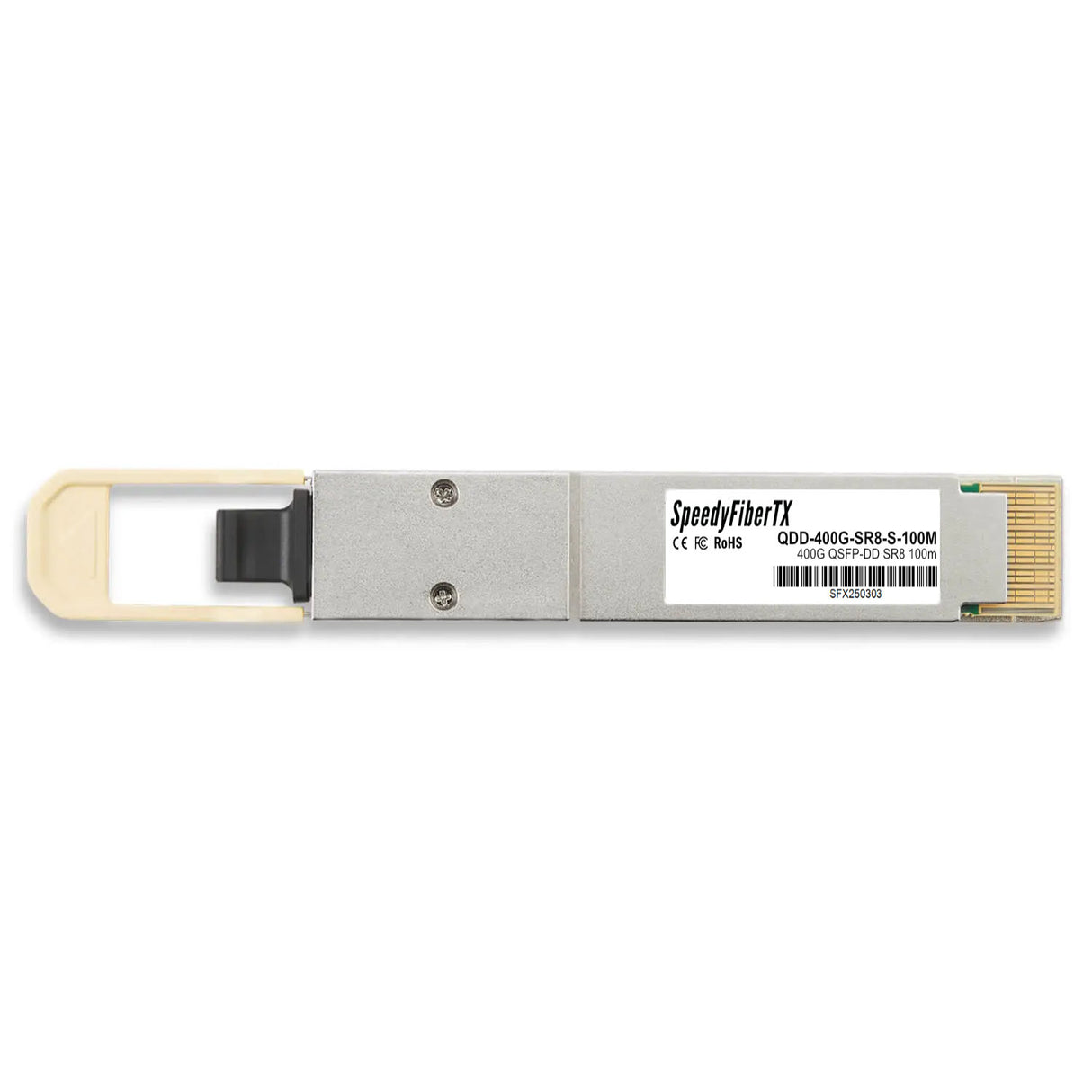

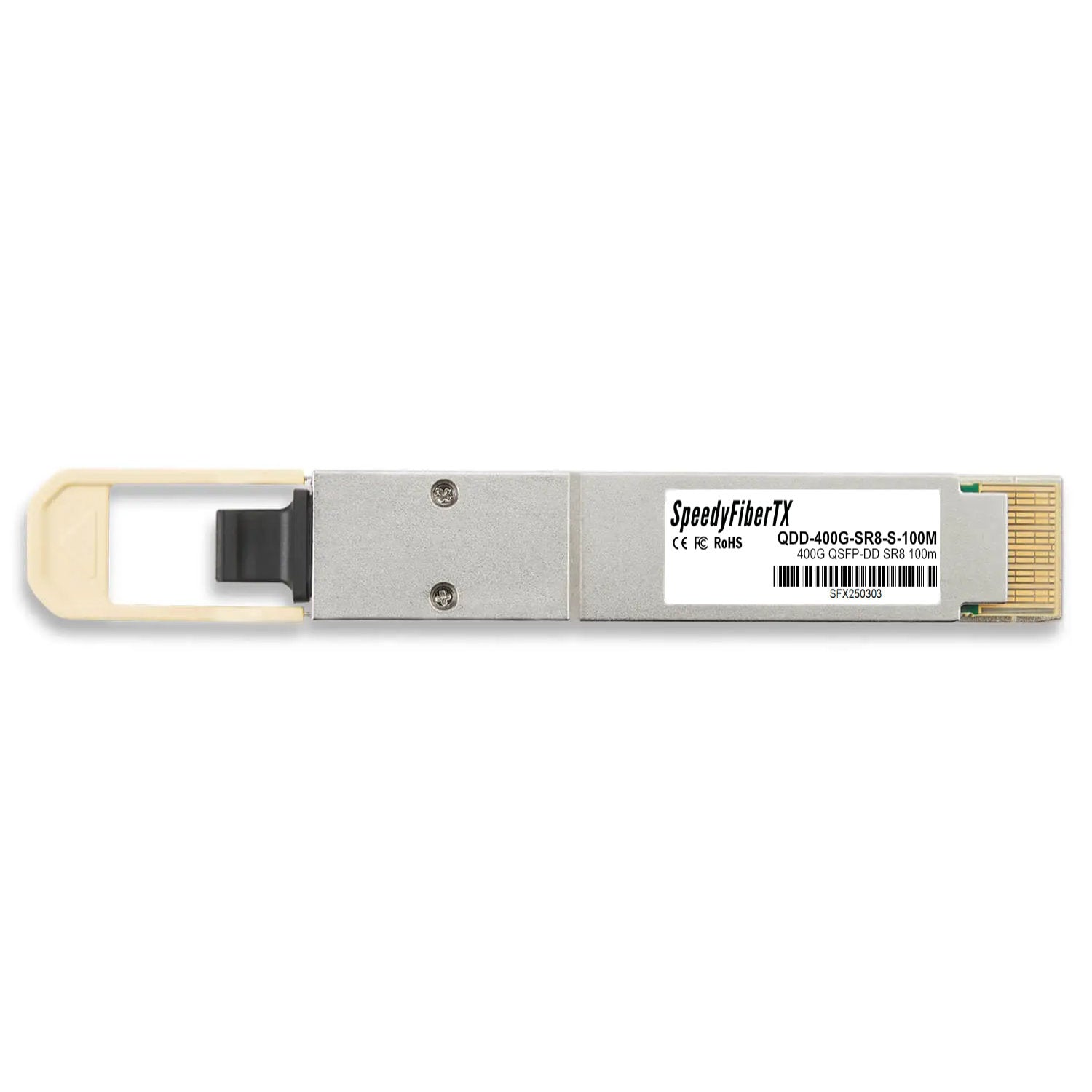

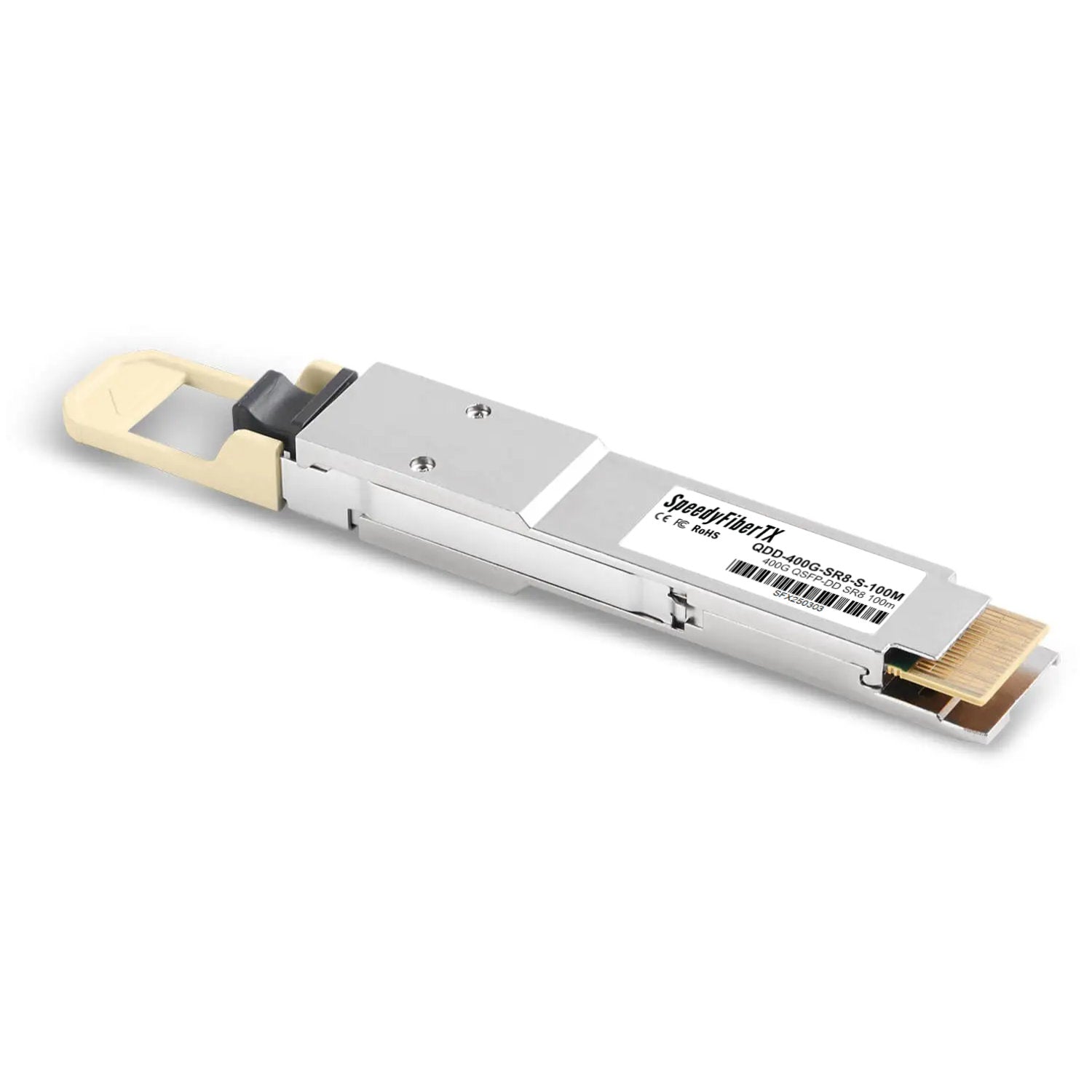

400GBASE-SR8 QSFP-DD PAM4 850nm 70m@OM3 / 100m@OM4 DOM MPO-24 MMF Optical Transceiver Module, Breakout to 2 × 200G-SR4 and 8 × 50G-SR

$5,732.00 TWD
Tax included Shipping calculated at checkout.
  • 🎉 Buy any 6, Get 5% Off.
  • 🚚 Typically ships in 7–9 business days
  • ✈️ Free Shipping on Orders Over $99 USD.

📦 For bulk orders, please contact us for a customized quote

Contact us
Highlight
  • Hot-pluggable QSFP-DD form factor
  • 8×53.125 Gb/s PAM4 channels (aggregate 400 Gb/s)
  • 850 nm VCSEL laser array and PIN receiver array
  • Up to 70 m on OM3 / 100 m on OM4 MMF
  • MPO-24 optical connector
  • Compliant with IEEE 802.3cm and QSFP-DD MSA
  • Supports breakout to 2×200G SR4 or 8×50G SR
  • Single 3.3 V power supply, power consumption < 12 W (Max)
  • Digital diagnostic monitoring (DDM/DOM) via I²C
  • Operating temperature 0 °C ~ 70 °C; RoHS compliant

The 400GBASE-SR8 QSFP-DD optical transceiver is a high-performance, short-reach module designed for 400GbE, 200GbE SR4 breakout, and 8×50GbE SR applications over multimode fiber (MMF).

It supports 8 parallel lanes of 53.125 Gb/s PAM4, providing an aggregate bandwidth of 400 Gb/s.

Operating at 850 nm, the module uses a VCSEL laser array and PIN photo-detector array to achieve up to 70 m on OM3 and 100 m on OM4 fiber.

It complies with IEEE 802.3cm 400GBASE-SR8 and QSFP-DD MSA, featuring digital diagnostics via I²C.

The MPO-24 connector supports direct 400G links or breakout to 2×200G SR4 or 8×50G SR channels, making it ideal for AI clusters and high-density data centers.
